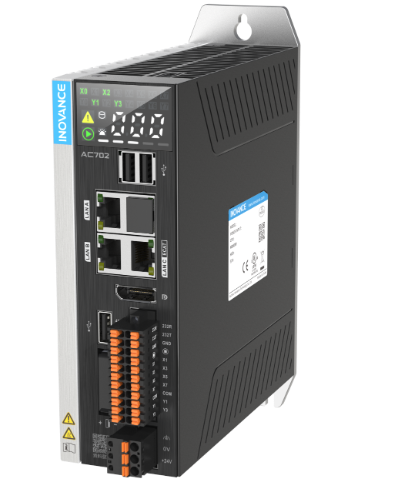

Outstanding Performance from Compact Body; Integrated Design; Line-Level Data Exchange
Improved efficiency
High Performance
Enhanced Quality
Large Capacity
Enhanced Quality
Integrated Design
Conserved space
Three Network Ports
Saving labor cost
Motion Control Made Easy for Electrical Engineers
High Performance
Intel Celeron x86 high-performance CPU, 64 GB SSD, and 4 GB DDR
1 ms per cycle of 32-axis synchronous control
1 ms per cycle of 32-axis synchronous control
Large Capacity
128 MB data storage and 128 MB program storage
5 MB non-volatile
5 MB non-volatile
Integrated Design
UPS integrated on the controller, enabling data retention at power failure without the need for an external UPS
One RS232/RS485 serial port integrated, supporting the Modbus master-slave protocol and free protocols
Integrated PLC stop/start interface for control of PLC start/stop through external signals
Built-in 200 kHz high-speed I/Os (eight DIs and four DOs)
One RS232/RS485 serial port integrated, supporting the Modbus master-slave protocol and free protocols
Integrated PLC stop/start interface for control of PLC start/stop through external signals
Built-in 200 kHz high-speed I/Os (eight DIs and four DOs)
Three Network Ports
Two Ethernet ports and one EtherCAT port that supports up to 128 slaves
Independent IP addresses for the two Ethernet ports, enabling isolation between the internal and external networks
Independent IP addresses for the two Ethernet ports, enabling isolation between the internal and external networks
Motion Control Made Easy for Electrical Engineers
IEC 61131-3 and PLCopen compliance
Easy-to-use comprehensive EtherCAT solution and PackML-based standard program development template
Axis position latching with the PLC without the need for an external encoder
Easy-to-use comprehensive EtherCAT solution and PackML-based standard program development template
Axis position latching with the PLC without the need for an external encoder
Empowering Digital Transformation of Traditional Enterprises
Various communication protocols including EtherNet/IP, OPC UA, Modbus TCP, UDP, and Socket for easy construction of line-level networks
API for communication with the host controller, enabling customized access
Remote access to MySQL databases and local access to SQLite databases
API for communication with the host controller, enabling customized access
Remote access to MySQL databases and local access to SQLite databases

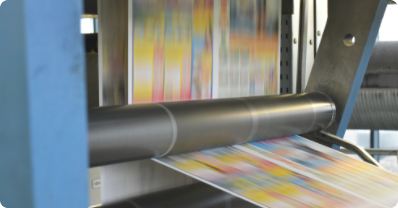

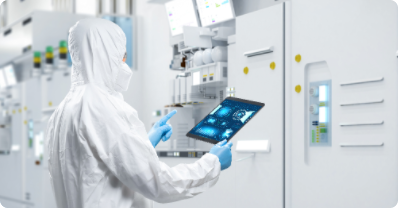

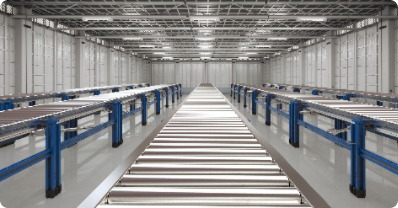

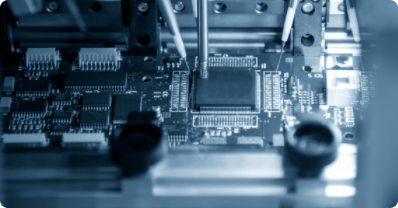

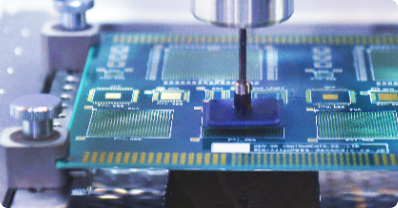

Applications
